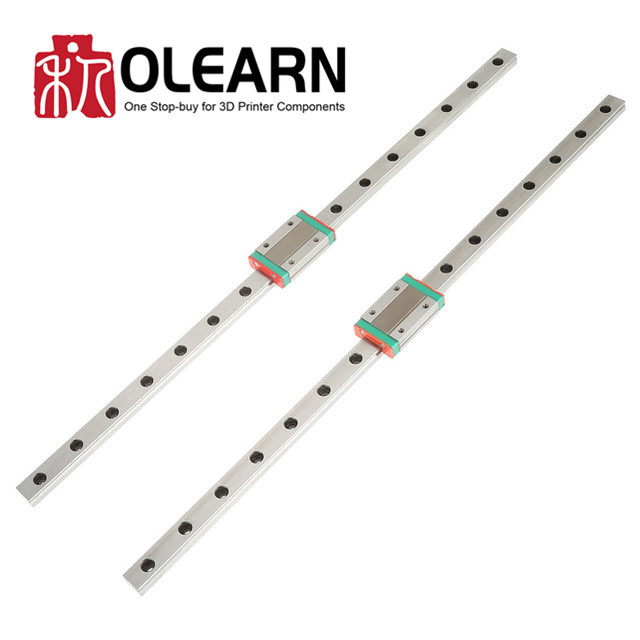

Linear Guide Slide Block 400MM Length

Linear Guide Slide Block 400MM Length

Features:
These linear rails and blocks are small in size and lightweight, especially suitable for small equipments.
Adopting 4-point contact design, it can bear load from every direction, and has good strength and high accuracy.
Designed with ball retainer, which allows interchangeability in the case of small precision.
Blocks have lubrication system; lubrication oil can be easily put into the oil inlet on the side.
Widely used for automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.

Specifications:
Model: LML12H (rail), MGN12H (block)
Type: Slide rail
Slide Track: Linear rail
Length: 400mm/15.7in
Material: Bearing steel
Accuracy Class: H
Block Fixation Method: Locked
Weight: 673g(approx.)
