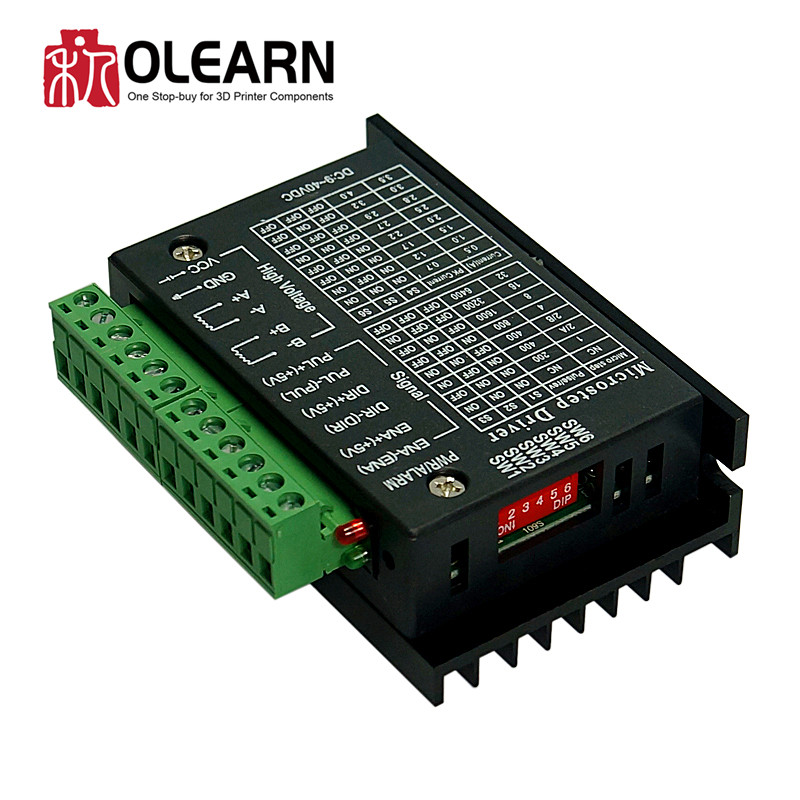

Stepper Motor Driver TB6600 For WorkBee / OX CNC Wood Router Machine Nema17 / Nema23 Stepper Motor
Description
Our TB6600 is an easy-to-use professional stepper motor driver, which can control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 stepper motor driver has a wide range power input, 9-42VDC power supply. And it is able to output 4A peak current, which is enough for the most of stepper motors.
The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. All signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.
As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.
Note: this is a newest upgrade version of TB6600 stepper motor driver.
Features:
Support 8 kinds of current control
Support 7 kinds of micro steps adjustable
The interface adopts high-speed optocoupler isolation
Automatic semi-flow to reduce heat
Large area heat sink
Anti-high-frequency interference ability
Input anti-reverse protection
Overheat, over current and short circuit protection
Specifications:
Input Current: 0-5A
Output Current: 0.5-4.0A
Power (MAX): 160W
Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
Dimension: 96x56x33 mm
Weight: 0.2 kg
