Aluminum Gantry Plates Ooznest OX CNC Aluminum Plates Kit For OX CNC Engraving Machine

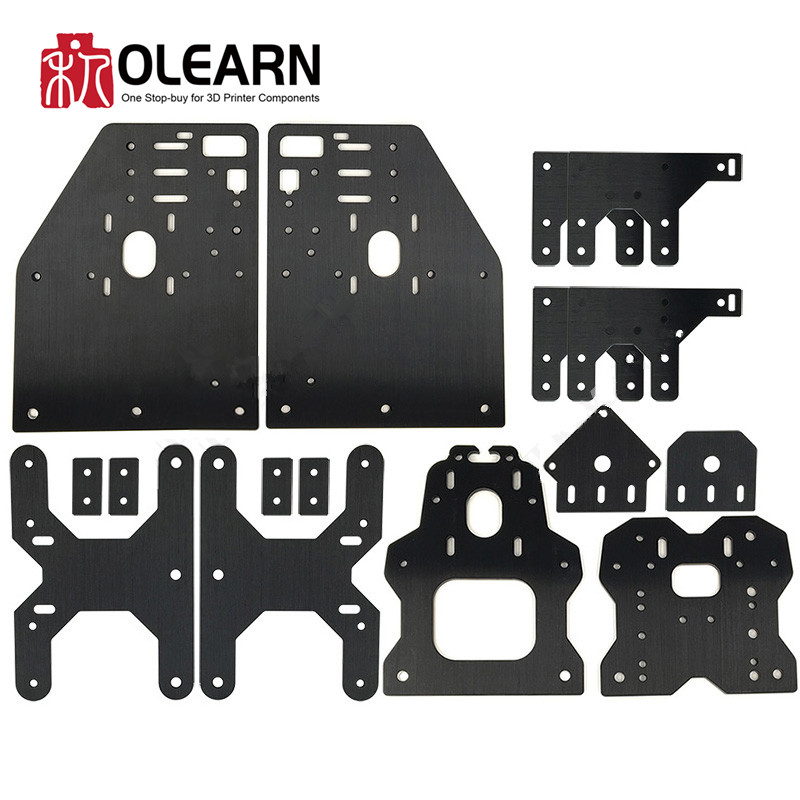

OX CNC Aluminum Gantry Plate Set - 17PCS Version
The plate designs used on our hobby CNC machine are based on the originals by Mark Carew. It has added touches to
increase the performance and design of the machine. On the Y-Axis added an inner wheel brace, which reduces the
movement of the wheels, and also helps to shield the wheels from cutting debris.
Plates have also been added or modified to completely cover any bare extrusion ends.
All the plates supplied with the kit are manufactured from 6082 Aluminium. The plates are then shot blast and anodized
in matt black, to give a very clean finish.
Notice: This Plate Set is used for OX CNC Machine (Belt Driven Version)
Additional Information
| Y-Plate: T6x227.5mmx180mm | 2 pieces |
|---|---|
| X-Plate-Front: T6x140x127.72mm | 1 piece |
| X-Plate-Back: T6x140x177.4mm | 1 piece |
| Y-Brace: T3x175.6x124.8mm | 2 pieces |
| Threaded-Rod-Mount-Motor: T3x60x57.77mm | 1 piece |
| Threaded-Rod-Mount-Bottom: T3x60x54.93mm | 1 piece |
| Face-Plate: T3x142.5mmx60mm | 1 piece |
| Y-End-Plate: T3x125x80mm | 4 pieces |
| End-Cap: T3x40x20mm | 4 pieces |
