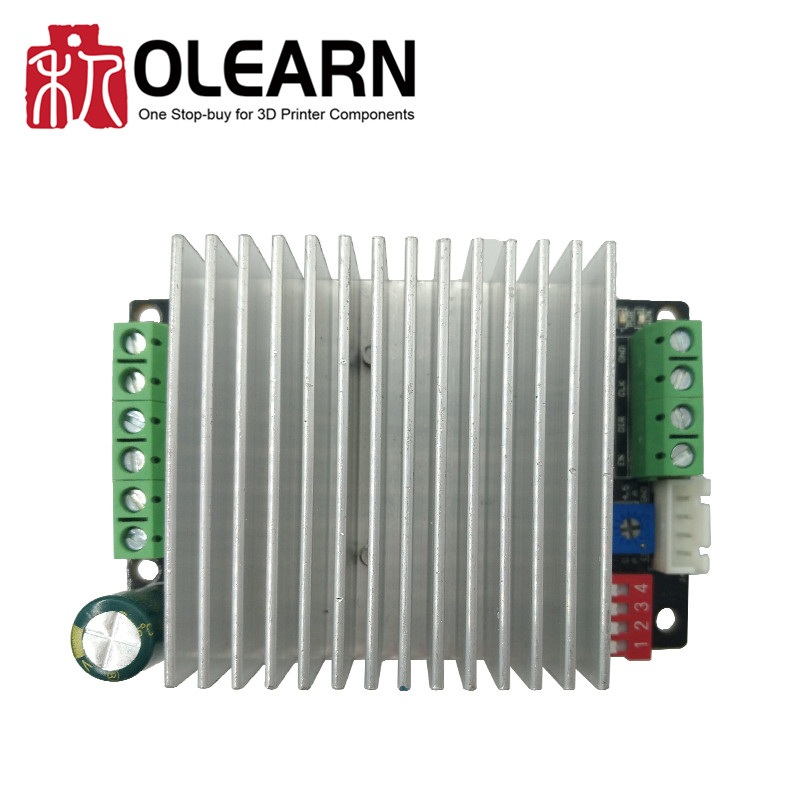

3D Printer parts MKS TB6600 Stepper Motor Driver

More Views

3D Printer parts MKS TB6600 Stepper Motor Driver
$9.50

Availability: In stock

EXW Price

Stock Code: B050. TB6600 4.5A Stepper Motor Drive
Description

Details

3D Printer parts MKS TB6600 Stepper Motor Driver

High performance, cost-effective. Automatic idle-current reduction. Supply voltage up to 45V DC Output current up to 4.5A. Can be used on ramps(need mks cd),mks gen and so on.

Features
PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver.
BiCD 0.13 (50 V) process, Lower Ron: 0.4 Ω(typ.).
Output withstand voltage: VCC = 50 V.
Output current: IOUT = 5.0 A (absolute maximum ratings, peak, within 100ms);IOUT = 4.5 A (operating range, maximal. value);More Stepper motors
Thermal shut down (TSD) protection.
Under voltage lock out (UVLO) protection.
Over-current detection (ISD) protection.
Double input port: Anti-reverse structure IDC haeder( 8pin symmetrical input) & HT-396-4pin input (suit for DIY).
Stepless adjustable reference voltage.
Compatible the CNC Stepper Motor.
Offer an solution to change your CNC to 3D Printer.
Board size: 50.5*50mm ; Carry 50*50*23mm aluminum Heat sink which build-in fix hole and connection hole.
Auto half current, energy conservation.
Photoelectric-isolation used in the input port, compatible more drive Level.
Programmable micro step - 1/1, 1/2A, 1/2B, 1/4, 1/8, 1/16.
Affordable price.




Additional Information

Additional Information

Stock CodeB050
